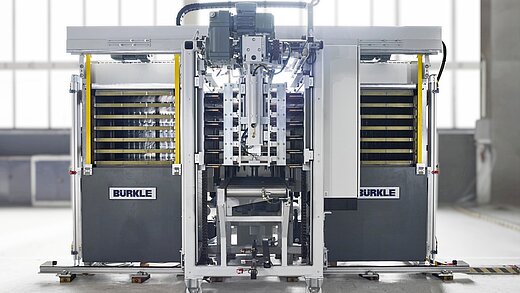

Laminating and press line for printed circuit boards

Laminating systems

WORK CELL²: Small and medium series production

The WORK CELL² easily adapts to your production requirements. Whether as a stand-alone hot press or a complete laminating line with cold press and carriage: The small and medium series production of printed circuit boards is optimally implemented by our WORK CELL² laminating line.

Laminating and pressing line for printed circuit boards and multilayers

Laminating systems

MULTILAM PCB press: Large series production

The MULTILAM PCB presses from BÜRKLE represent extensive handling, a high degree of automation and the possibility of large series production in the production of printed circuit boards. In cooperation with our customers, we design individual lines that are tailored to customer-specific requirements.

Laminating and press lines

Modular expandability for individual line concepts

With our modular line design, we enable you to design your own individual line concept. Convince yourself of our technologies and the diverse application possibilities of our machines and line components with the help of our line overview in our brochure.

Multilayer press line without cold presses

Besides lines with cold presses, systems with a simple heating and cooling unit are the most important production types on the market. For this reason, our line, which is tailored to customer-specific requirements, uses hydraulic vacuum presses with a heating and cooling unit. Fast, simple and reliable, the entire lamination process is thus reproduced in one press.

Multilayer vacuum press LAMV 1500

On a format of 670 x 760 mm, our vacuum press LAMV 150 achieves a pressing force of up to 1500 kN. Precisely matched to the production of multilayer circuits, these are both laminated and cooled down to ambient temperature (40°C) in the LAMV.

Heating / cooling unit

The heating and cooling units ensure reliable temperatures throughout the production cycle. In this line concept, for example, for up to 300°C in the heating process and for 40°C in the recooling process.
ng.

Charging/ discharging storage

The charging and discharging storage units simplify the provision of the batches for the carriage. The storage units are filled with the product packages to be pressed and the laminated workpieces are removed via motor-driven lifting tables.

Loading/unloading trolley BRK

Equipped with a reversing feeder, the carriage ensures automatic loading and unloading of the presses and storage racks. For simple maintenance work, the carriage is easily accessible via a stair with platform on the side.

1

Multilayer vacuum press LAMV 1500

On a format of 670 x 760 mm, our vacuum press LAMV 150 achieves a pressing force of up to 1500 kN. Precisely matched to the production of multilayer circuits, these are both laminated and cooled down to ambient temperature (40°C) in the LAMV.

2

Heating / cooling unit

The heating and cooling units ensure reliable temperatures throughout the production cycle. In this line concept, for example, for up to 300°C in the heating process and for 40°C in the recooling process.
ng.

3

Charging/ discharging storage

The charging and discharging storage units simplify the provision of the batches for the carriage. The storage units are filled with the product packages to be pressed and the laminated workpieces are removed via motor-driven lifting tables.

4

Loading/unloading trolley BRK

Equipped with a reversing feeder, the carriage ensures automatic loading and unloading of the presses and storage racks. For simple maintenance work, the carriage is easily accessible via a stair with platform on the side.

Multilayer press line with secondary heating circuit

For the production of multilayers in large volumes, BÜRKLE customers need reliable and powerful systems. Our system concept with secondary heating circuit addresses precisely these factors and, unlike other systems, offers active re-cooling to 40°C. High-quality multilayers can be laminated fully automatically around the clock on 12 tiers in three hot and two cold presses.

Multilayer vacuum press LAMVS 500

The LAMVS thermal oil-heated vacuum press is characterized by particularly precise press force accuracy. Despite forces of up to 5000 kN, our press technology ensures maximum reliability in terms of production quality and quantity. The format is customized according to product and process requirements. In this case to 1200 x 1300mm.

Loading/unloading trolley BRK

Equipped with a reversing feeder, the carriage ensures automatic loading and unloading of the presses and storage racks. For easy maintenance work, the carriage is easily accessible via a ladder on the side.

Charging/ discharging storage

The charging and discharging storage units simplify the provision of the batches for the carriage. The storage units are filled with the product packages to be pressed and the laminated workpieces are removed via motor-driven lifting tables.

Hydraulic cold press LAMK 20

In order to increase the line capacity and save energy, this concept relies on two powerful BÜRKLE cold presses. The water-cooled presses cool the end products down to the target temperature, while the hot presses can already laminate a new batch.

1

Multilayer vacuum press LAMVS 500

The LAMVS thermal oil-heated vacuum press is characterized by particularly precise press force accuracy. Despite forces of up to 5000 kN, our press technology ensures maximum reliability in terms of production quality and quantity. The format is customized according to product and process requirements. In this case to 1200 x 1300mm.

2

Loading/unloading trolley BRK

Equipped with a reversing feeder, the carriage ensures automatic loading and unloading of the presses and storage racks. For easy maintenance work, the carriage is easily accessible via a ladder on the side.

3

Charging/ discharging storage

The charging and discharging storage units simplify the provision of the batches for the carriage. The storage units are filled with the product packages to be pressed and the laminated workpieces are removed via motor-driven lifting tables.

4

Hydraulic cold press LAMK 20

In order to increase the line capacity and save energy, this concept relies on two powerful BÜRKLE cold presses. The water-cooled presses cool the end products down to the target temperature, while the hot presses can already laminate a new batch.
